Woodworking Locator

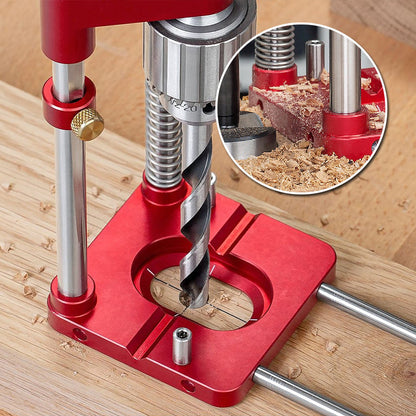

👩‍🔧Drill guide for precise, straight drilling in wood🔧

Our drill guide is designed to make drilling wood easier, straighter, and more accurate.

FEATURES

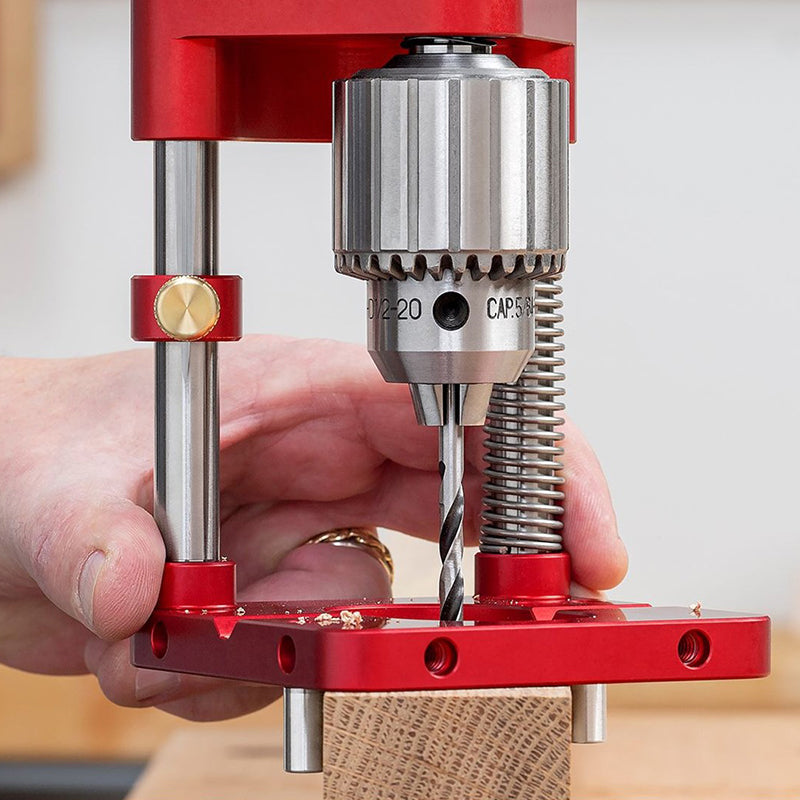

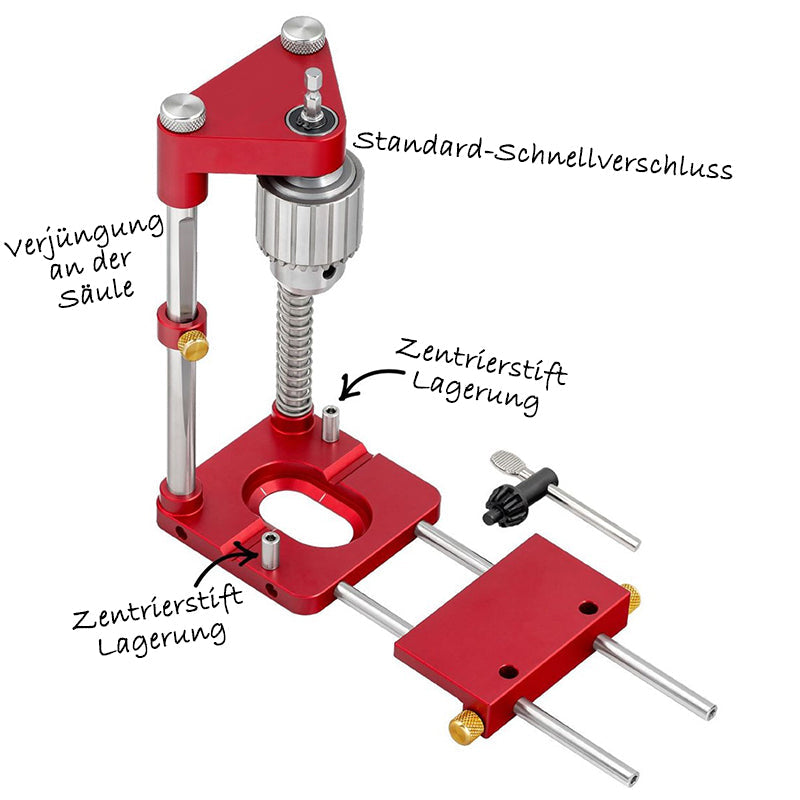

• 🪓Premium material: Made of alloy steel, robust and durable. With wedge chuck, conical depth guide shaft, limit ring, spring return, reversible chuck holder, integrated V-groove, alignment, and adjustable stop.

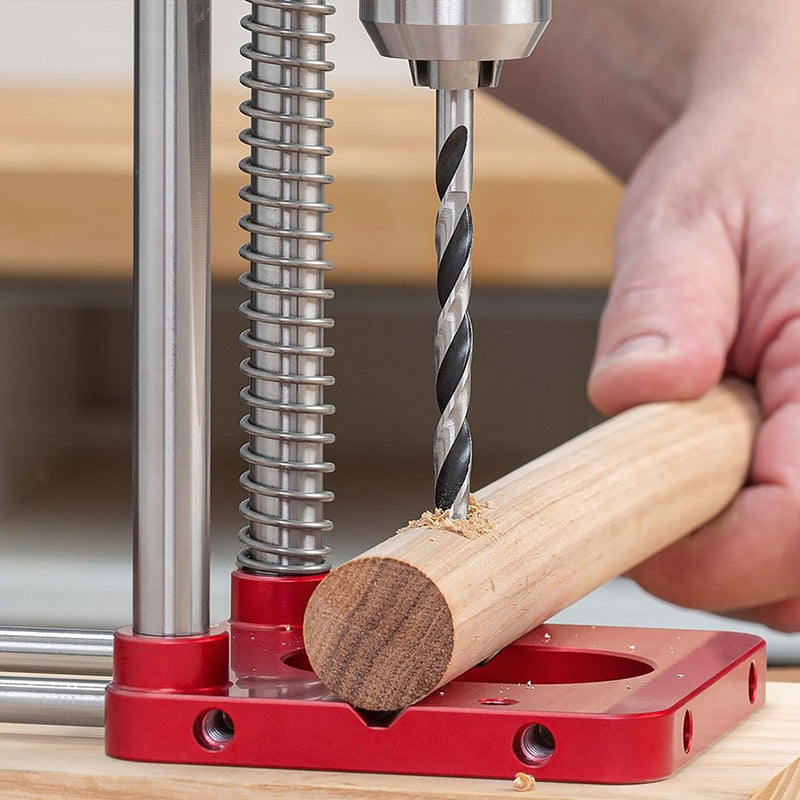

• 🪓User-friendly: Our drill guide has a drilling capacity of 1, but when you remove and flip it, you can use bits up to 2 in width. A V-groove in the bottom allows for easy centered drilling of round materials like wooden dowels.

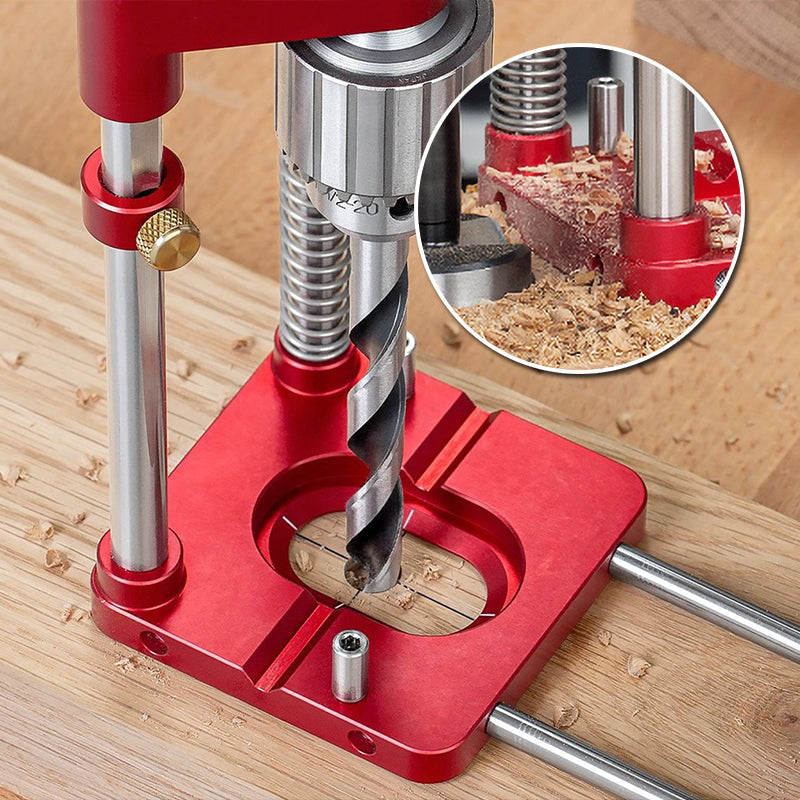

• 🪓Precise wood drilling: Drill hole guide with clear and precise scale, adjust the scale to the wood thickness for accurate alignment. Versatile uses. The stop can be mounted on any of the 4 sides of the square base and aligns to the center line.

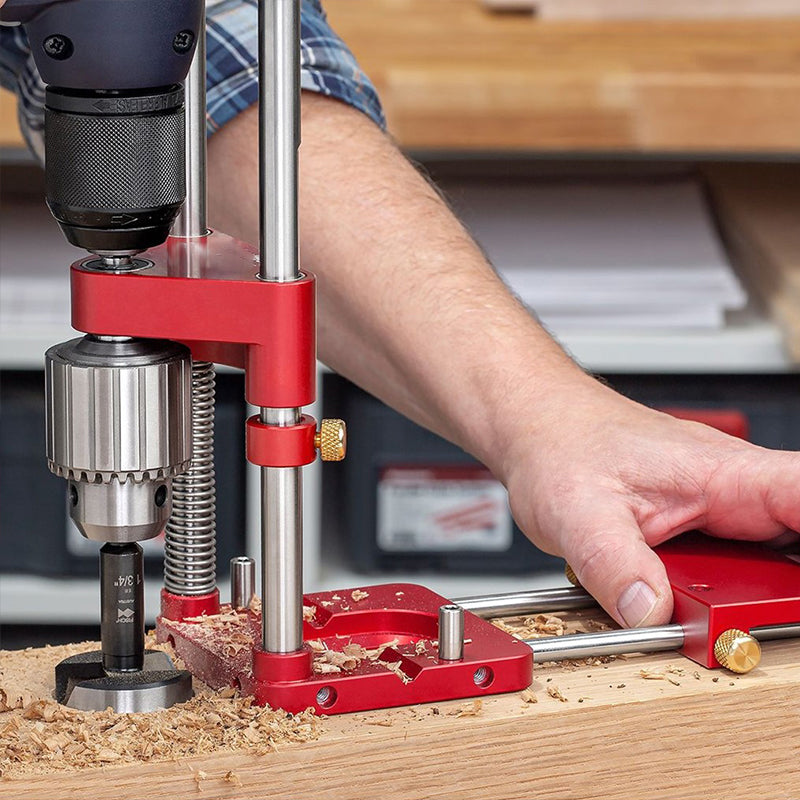

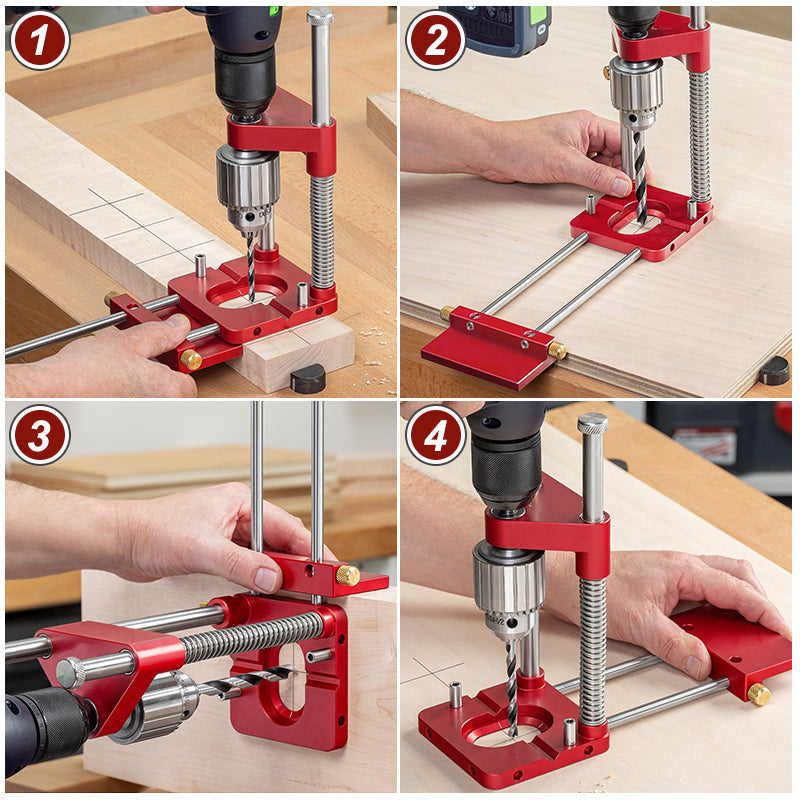

HOW TO DRILL A POCKET HOLE

1. Adjust the drilling height according to the thickness of the wood.
2. Secure the drill guide with the clamp on the wood.
3. Insert a step drill into the drill guide hole.
4. Turn on the drill and set a speed of 500-1500 RPM.
5. Drill slowly, until half of the step drill is in the wood for higher precision.

SPECIFICATIONS

• Material: Alloy steel

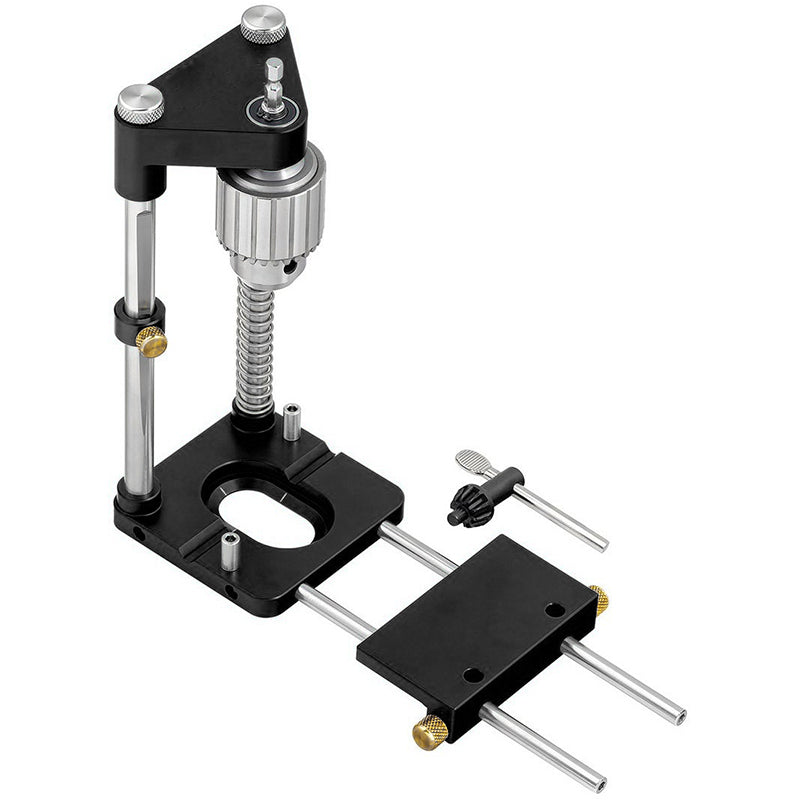

• Color: Black; Red
• Weight: Approximately 800g
• Size: 25*8*7cm

SCOPE OF DELIVERY

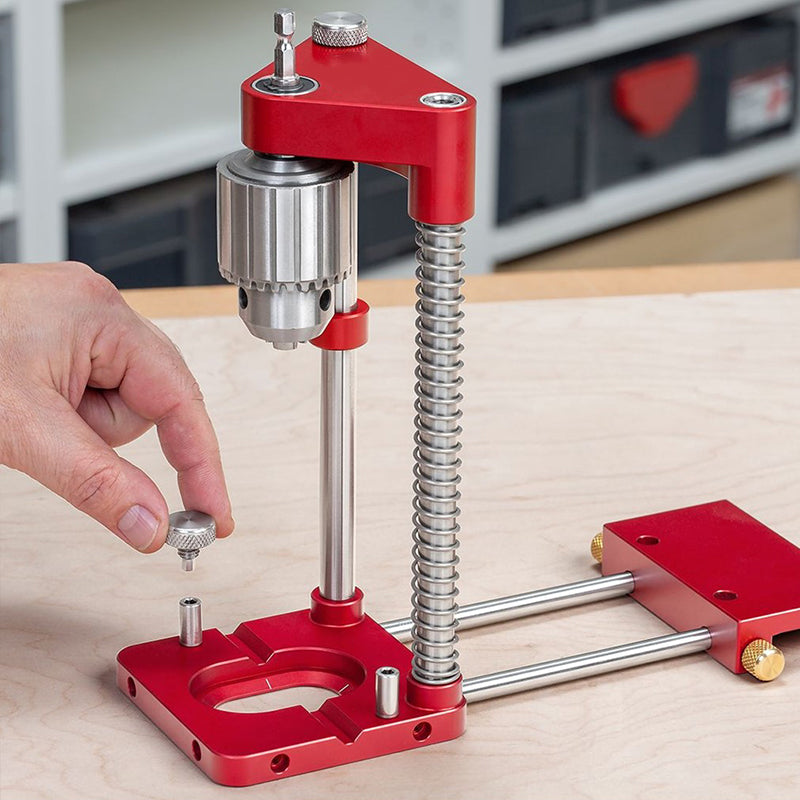

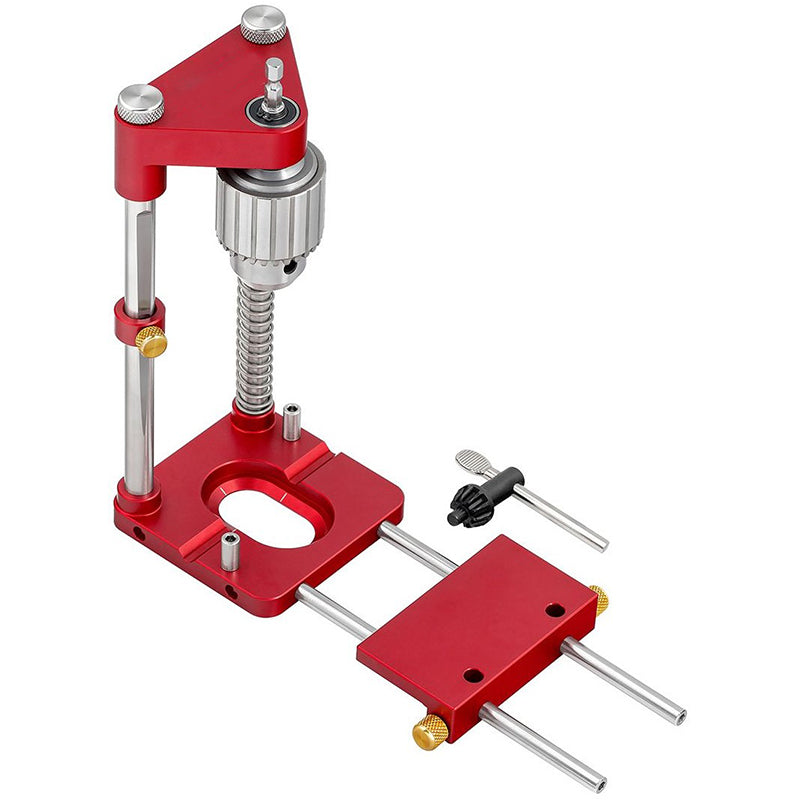

• 1 x drill guide (base with column and chuck)
• 1 x stop with 2 guide rods
• Centering pins
• 1 x chuck key
